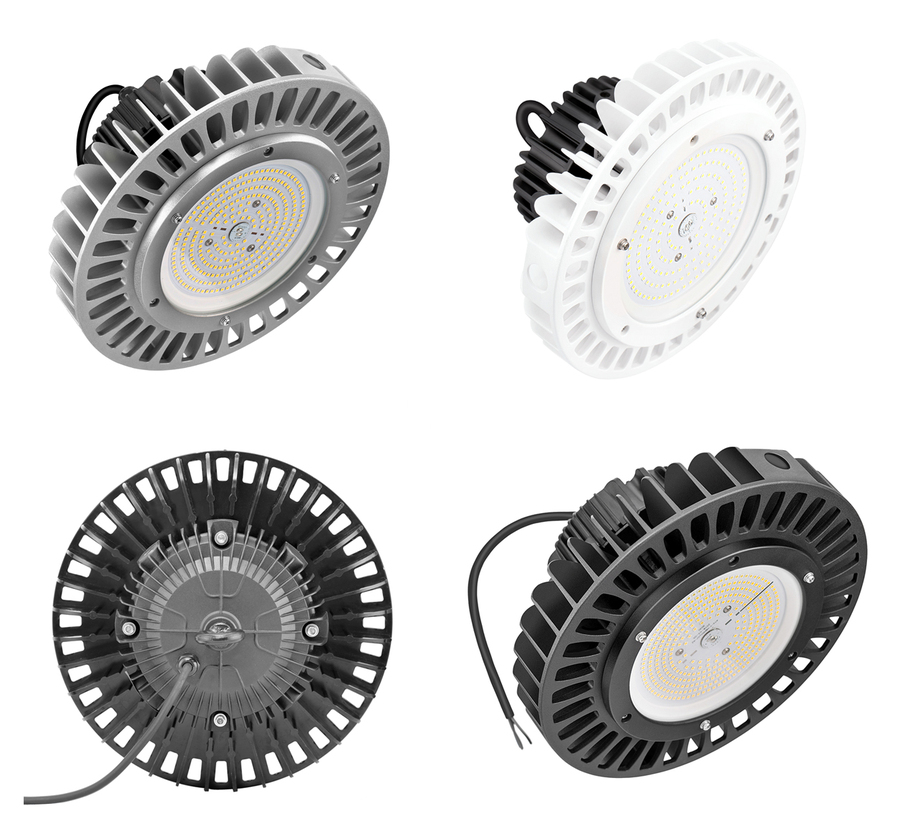

LED high bay UFO Luminous Flux Lamp (145 LM/W)
Product Detail
Module: IN-UFOCREE-100W Type: Led Highbay Light
Voltage: 100-277V AC Power: 100W
CCT: 2700-6500K Lumen: 14500lm±5%
PF: >0.9 CRI: >80

Appliation:

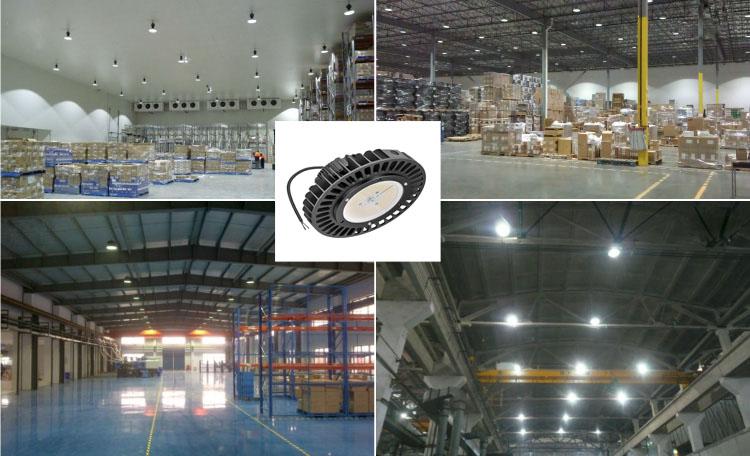

The UFO led high bay light is widely used for commercial lighting & industrial lighting.



Product detail:

ModuleIN-HBCREE-100W
Luminosity14500lm±5%
Light Efficiency145lm/w
Power100W
Chip BrandCREE 3030
CCT4000/5000/5700K/6500K
CRIRa>80
Beam Angle60°   90°   120°
Input Voltage100-277V AC 50/60Hz
PF>0.9
IP GradeIP65
DriverMeanwellHBG
LED Lifespan50000 Hours at 50℃ ambient temperature
Working Temperature-40℃ ~ 50℃

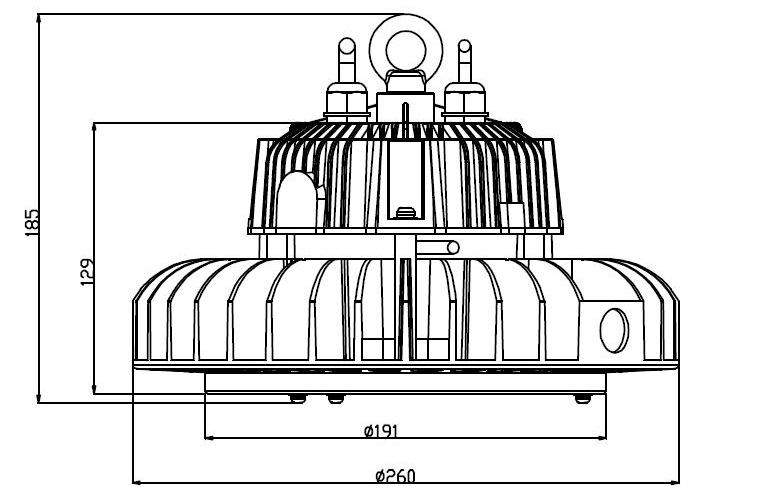

Product Size:

100-150W SIZE.jpg


Installation:

The UFO led high bay light can be installed with hook mounts.

1. screw the circular ring tightly.

2. please hang the fixture into the lifting hook and protect it from falling.

3. connect the wires.

hook mount.jpg

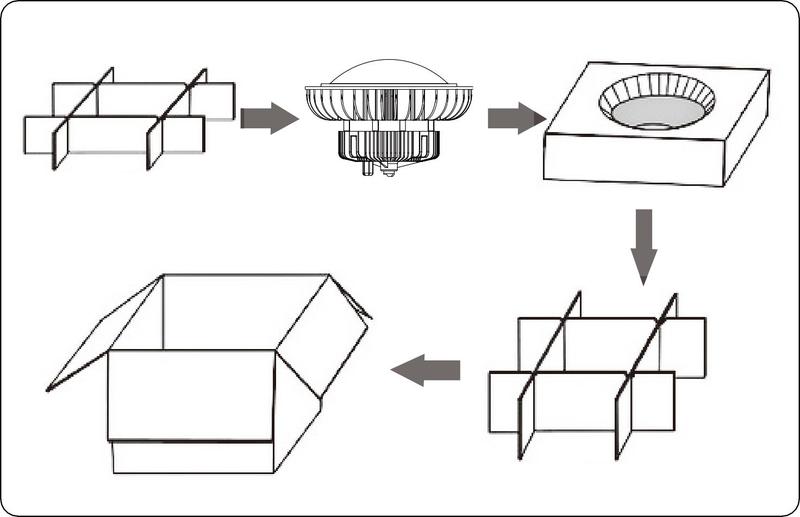

Package Information:

Ltem   ModelCartonsize (mm)N.W.(kg)G.W ( kg)QTY. (PCS)
IN-HBCREE-100W298*298*270mm3.5 KG4.2 KG1PCS
IN-HBCREE-150W298*298*270mm3.5 KG4.2 KG1PCS
IN-HBCREE-200W325*325*297mm5.1 KG5.8 KG1PCS
IN-HBCREE-240W325*325*297mm5.5 KG6.4 KG1PCS
