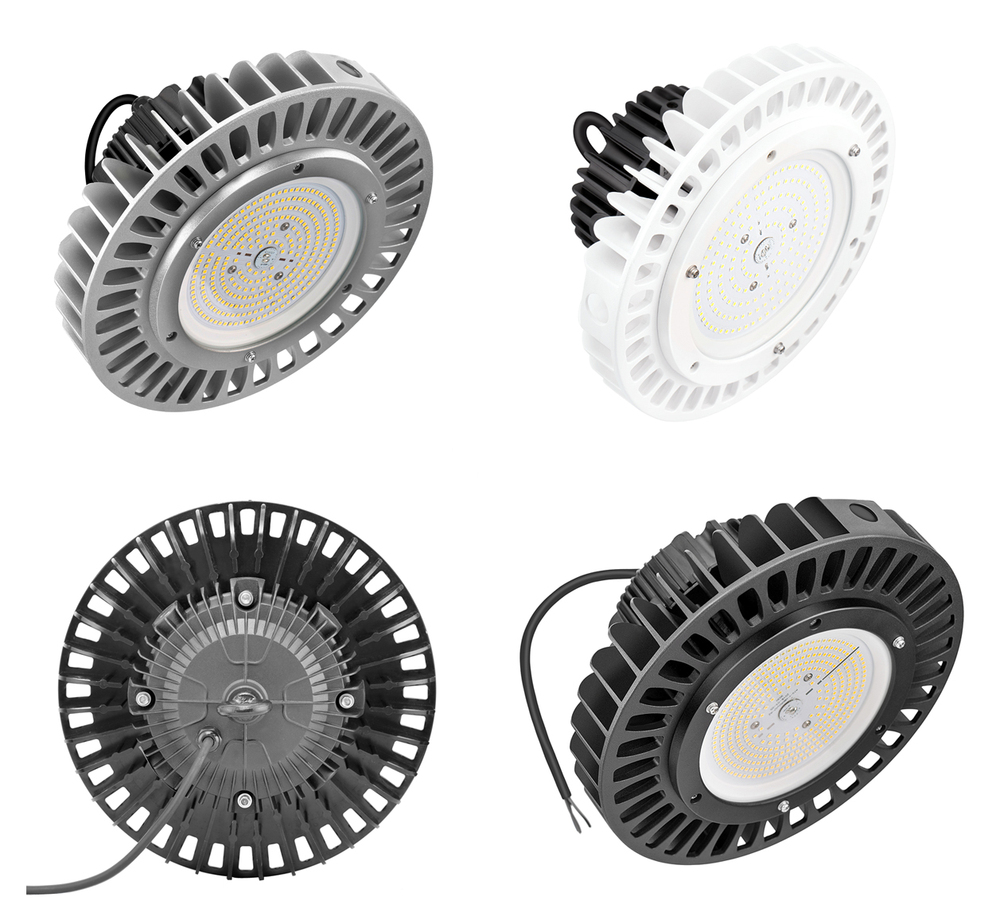

150 Watt Dimmable LED High Bay UFO LED Light
Product Detail
Module: IN-HBCREE-150W Type: Led Highbay Light
Voltage: 100-277V AC Power: 150W
CCT: 2700-6500K Lumen: 22500
PF: 0.9 CRI: >80Ra

Odinlighting 150W UFO LED highbay is eneryg saving led light products. Save even more by using a lower watt unit. Premium grade components make this an industrial grade LED High Bay Light or Warehouse Light.


Odinlighting  new UFO highbay is smaller, longer lasting and more efficient. The new design is more compact without sacrificing performance. Preinstalled hook makes installation easy. Simple replacement for existing lights or for new installation. Stop replacing old Metal Halide, HID or CFL bulbs with the new UFO High Bay LED light.


Aluminum housing with high tech heatsink protects the LED driver. Better Heat dissipation ensures longer LED life and safety. Good quality Taiwan Meanwell HBG power driver and CREE SMD 3030 LED resource. Acrylic lens. IP65 Waterproof for all conditions. All backed by a 5 year warranty.



Appliation:

The UFO led high bay light is widely used for commercial lighting & industrial lighting.


Product detail:

ModuleIN-HBCREE-150W
Luminosity22500lm±5%
Light Efficiency145lm/w
Power150W
Chip BrandCREE SMD 3030
CCT4000/5000/5700K/6500K
CRIRa>80
Beam Angle60°   90°   120°
Input Voltage100-277V AC 50/60Hz
PF>0.9
IP GradeIP65
DriverMeanwellHBG
LED Lifespan50000 Hours at 50℃ ambient temperature
Working Temperature-40℃ ~ 50℃

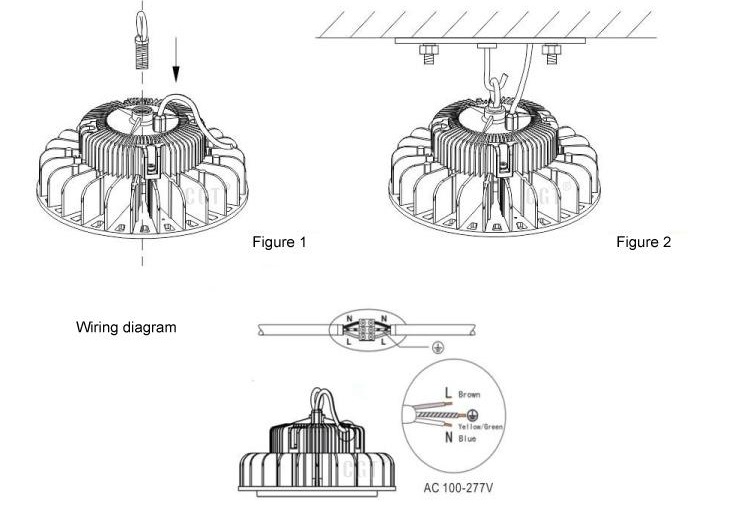

nstallation:

The UFO led high bay light can be installed with hook mounts.

1. screw the circular ring tightly.

2. please hang the fixture into the lifting hook and protect it from falling.

3. connect the wires.

hook mount.jpg
