USA warehouse inventory LED Stubby Garden Lights 30w 40w 50w
Module : ODIN-GCL-30W
Type : led garden lights
Voltage : 100-277V AC
Power : 30W
CCT : 2700-6500K
Lumen : 3600
PF : 95%
CRI : >80Ra
Product Detail

GCL Series LED Stubby Garden Lights,excellent performance with 120-130lm/w and CRI >80.

Robycon series LED driver,

Epistar/ LED chips,

5 years warranty.

With mature LED heat sink technology.

GCL Series LED Stubby Garden Lights retrofit to conventional lighting fixtures. It can replace MH/HPS/HID/CFL lamps.

We are always devote to offering best productsand service for you.


Product Description

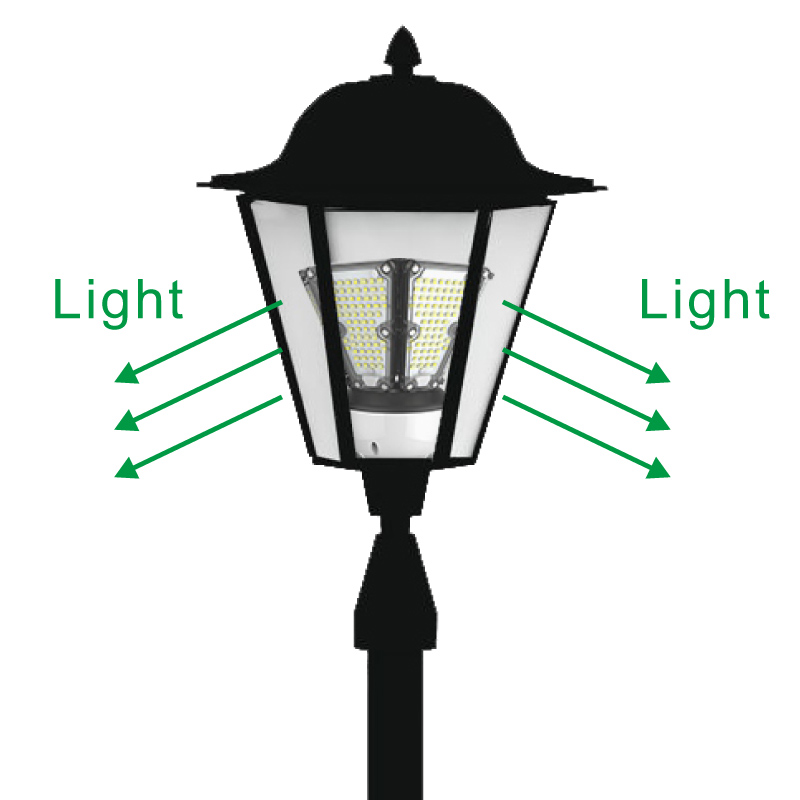

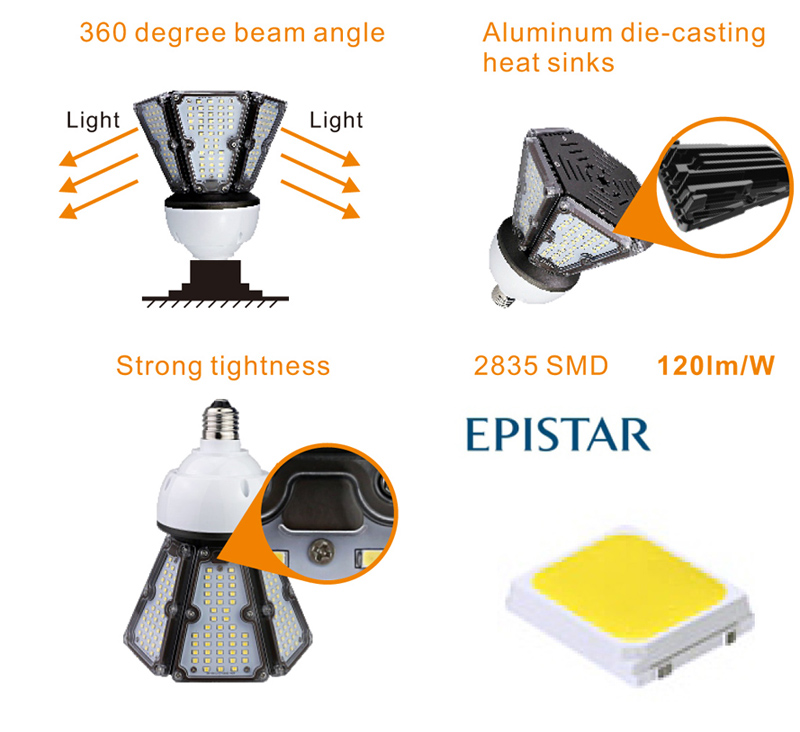

1.  Beam angle 360 degrees

2. IP65 ingress protection

3. Aluminum die-casting heat sinks would speed up heat dissipation

4. Streamline exterior design, beautiful appearance

5. Suitable for use in enclosed luminaires

6. E26/E27/E39/E40 socket adapter available

7. AC100-277V input range

8. Epistar 2835 SMD

9. Replacement for HID, MHL high bay or post top application

10. No RF interference, No IR/UV radiation ,no mercury pollution

11. Wide colour availability in degrees Kelvin(K), 2700-7500K

12. Environment friendly ,energy saving (70~80%)

13. UL\DLC listed safety standards for ambient operation

14. from -40°F to 122°F (-40°C to 50°C)

15. 5 Years Warranty


 Sepc    ODIN-GCL-30W    ODIN-GCL-40W    ODIN-GCL-50W
 Power    30W    40W    50W
 Lumen    3600lm±10%    4800lm±10%    6000lm±10%
 Efficiency    >120lm/w    >120lm/w    >120lm/w
 LED Chips    Epistar 2835 SMD    Epistar 2835 SMD    Epistar 2835 SMD
 Beam Angle    360°    360°    360°
 CCT    2700-7500K    2700-7500K    2700-7500K
 Input Voltage    100-277 VAC    100-277 VAC    100-277 VAC
 Lamp Base    E36/E37/E39/E40    E36/E37/E39/E40    E36/E37/E39/E40
 PF    >0.95    >0.95    >0.95
 CRI    Ra>80    Ra>80    Ra>80
 IP Rating    IP65    IP65    IP65
 Working Temperature    0.95kg    0.95kg    0.95kg
 Lifespan    50000hours    50000hours    50000hours
 Net Weight    0.95kg    0.95kg    0.95kg

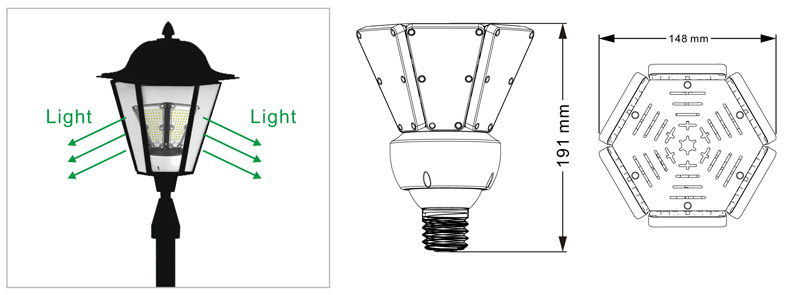

 Dimension    Φ148*191mm    Φ148*191mm    Φ148*191mm


Applications

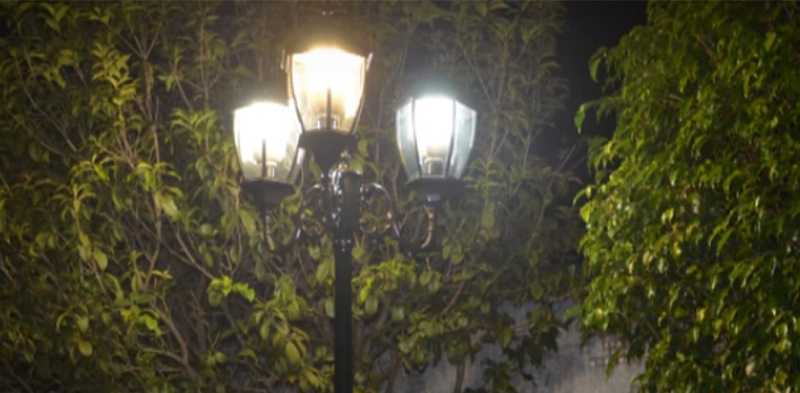

LED Corn Light is mainly used Courtyard,Garden,street, warehouse, shopping mall,wall light. Parking Lot, Square,Airport, Subway, Gymnasium, and other places need good lighting venue.


Installation Process



Note

Don't take the LED lamp apart

The LED Stubby Garden Lights must work under the right voltage according to the specification

Not suitable for dimmers or electronic switches or remote controls

Application in enclosed fixtures may speed up lumen depreciation and shorten lamp life

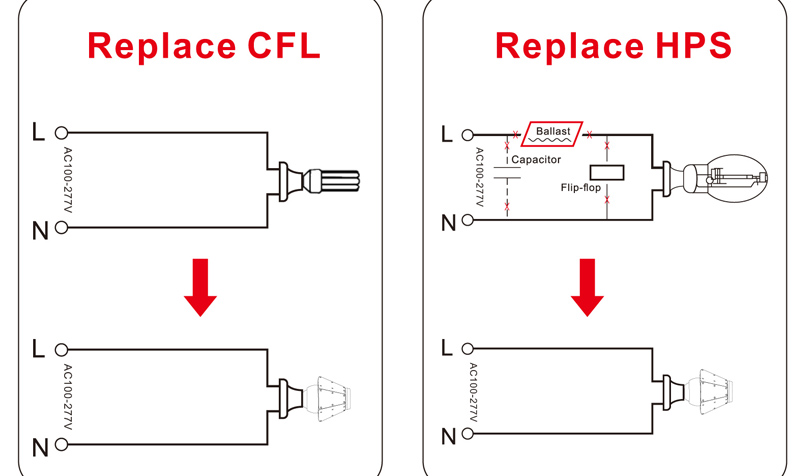

Replace

30W replace 100w HPS CFL HID

40W replace 125w HPS CFL HID

50W replace 150w HPS CFL HID

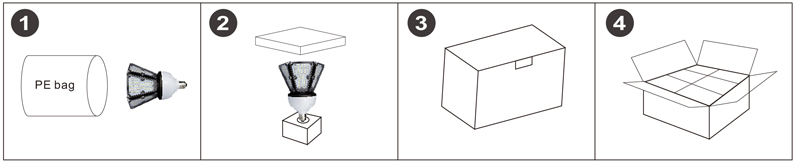

Package information
